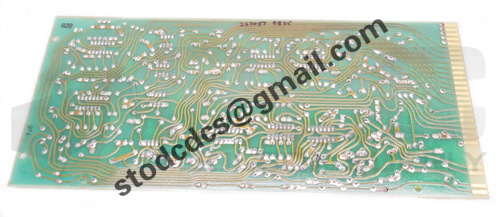

193X376ABG01 frequency conversion card

Brand:GE
Model:193X376ABG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X376ABG01 frequency conversion card

Product manual:

GE 193X376ABG01 Inverter Card
It is a key control module in the GE 193X series automation system, used for variable frequency regulation and drive control of electric motors.

1、 Product Overview
Product model: 193X376ABG01

Product Name: Variable Frequency Card/Variable Frequency Control Board

Series: GE 193X Control Module Series

Application areas: Motor control, variable frequency drive, speed regulation system

2、 Main functions
Frequency Control
Control the operating frequency of the motor, adjust the motor speed,
Suitable for variable speed operation of equipment such as fans, pumps, compressors, etc.

PWM (Pulse Width Modulation) signal output
Generate PWM signals, control voltage and current output, and drive the motor for precise speed regulation.

Closed loop
Support for use in conjunction with speed feedback systems to achieve closed-loop speed regulation and maintain stable motor speed.

Overload protection and fault alarm
Provide overcurrent, over temperature and other protection functions to ensure the safe operation of equipment, and output alarm signals.

Signal isolation and anti-interference
Provide isolation processing for input and output signals to avoid the impact of external noise on the system,
Improve the stability and anti-interference ability of the system.

3、 Typical technical parameters
Input signal type: Analog control signal (such as 0-10V, 4-20mA)

Output signal type: PWM output signal, controlling the inverter and motor driver

Control frequency range: 0.1 Hz to several thousand Hz

Isolation voltage: Input/output signals are electrically isolated from the control system

Installation method: card insertion type, compatible with GE 193X series control rack

Working temperature range:- 10 ° C to+60 ° C

Protection functions: overcurrent protection, over temperature protection, short circuit protection
