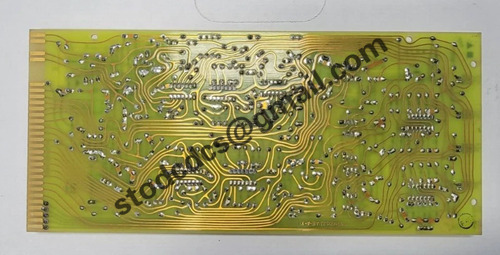

193X376AB-GO1 frequency conversion card

Brand:GE
Model:193X376AB-GO1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X376AB-GO1 frequency conversion card

Product manual:

GE 193X376AB-G01 Inverter or Variable Frequency Card
It is a dedicated control module in the GE 193X series control system, mainly used for frequency modulation and drive signal generation in motor control systems.
It is widely used in DC speed control systems, AC frequency conversion systems
As an important component of regulating the operating status of electric motors in power generation control and large-scale industrial drives.

1、 Basic Product Information
Product model: 193X376AB-G01

Product Name: Variable Frequency Card/Variable Frequency Control Board

Manufacturer: GE（General Electric）

Series: 193X Control Module

Main applications: Motor drive frequency regulation, PWM control, variable frequency output

2、 Main functions

PWM modulation output
Generate pulse width modulation (PWM) signals to drive inverters or power modules and control output voltage/current waveforms.

Speed regulation function
Linked with the speed feedback system, it forms a closed-loop speed control to improve the accuracy of motor control.

Protection function
It can integrate overcurrent, overvoltage, undervoltage and other protection mechanisms to ensure the safe operation of the system.

3、 Typical technical parameters (depending on specific system configuration)
Input signals: analog control signal (0-10V, 4-20mA), digital control signal

Output form: PWM pulse signal, variable frequency modulation signal

Supported frequency range: 0.1 Hz to several thousand Hz (depending on supporting hardware)

Control mode: open-loop/closed-loop speed control

Installation method: plug-in, compatible with GE 193X control rack

Working temperature range:- 10 ° C to+60 ° C

Electrical isolation: with input/output channel isolation function

4、 Typical application areas
Power generation control system (especially turbine variable speed control)

Industrial variable frequency drive system (fan, water pump, compressor)

Variable speed motor control in heavy industries such as steel, papermaking, and petrochemicals

Power transmission and distribution automation system

Railway traction motor drive system
