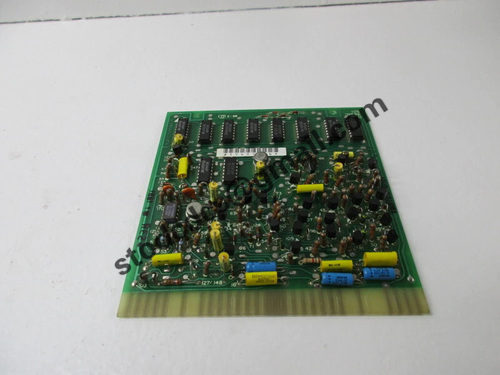

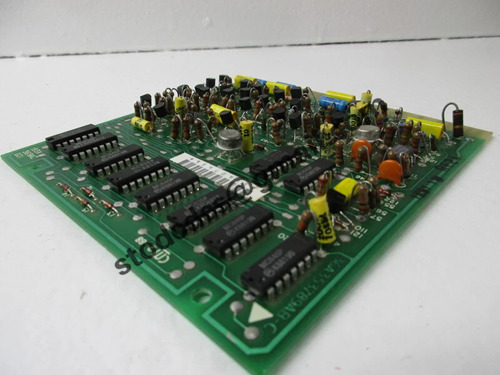

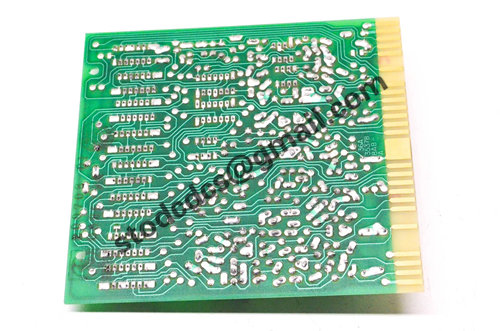

193X369ACG01 interface module
Brand:GE
Model:193X369ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
193X369ACG01 interface module
Product manual:
GE 193X369ACG01 Interface Module
It is a key communication and signal conversion component in the GE 193X series industrial automation system,
Commonly used in large industrial control systems to achieve signal access and isolation between different modules and external devices.
1、 Product Overview
Project Content
Product model 193X369ACG01
Product Name Interface Module
GE 193X Industrial Control Module Series
Functional positioning signal conversion, system interface, isolation protection
2、 Core functions
Multi channel signal access: Provides multiple input and output channels to achieve centralized signal access.
Signal isolation: Implement electrical isolation between control circuits and external devices to enhance system safety.
Signal conversion: supports the mutual conversion between analog and digital quantities, and adapts to different modules.
System communication interface: It can serve as an intermediate communication bridge between the upper system and sub modules.
Compatibility support: Seamless collaboration with GE control boards such as driver boards, adjustment boards, power modules, etc.
3、 Typical technical parameters (reference)
Input signal type: analog signal, voltage/current control signal
Output signal types: voltage/current signal, digital signal
Insulation strength: ≥ 1500V AC to enhance system anti-interference and safety performance
Number of channels: Multiple input/output interfaces, supporting separate channel processing
Installation method: Plug in card for easy system integration and maintenance
Working temperature range:- 10 ° C to+60 ° C, suitable for industrial environments
4、 Application Fields
Generator and Transformer Protection System: Provides multi-channel interface signal acquisition and distribution
DCS/PLC system: serves as a relay interface to connect external devices with the main control system
Automated production line control: processing signal conversion and isolation between sensors and actuators
Industrial control systems for industries such as petrochemicals, power, metallurgy, etc
