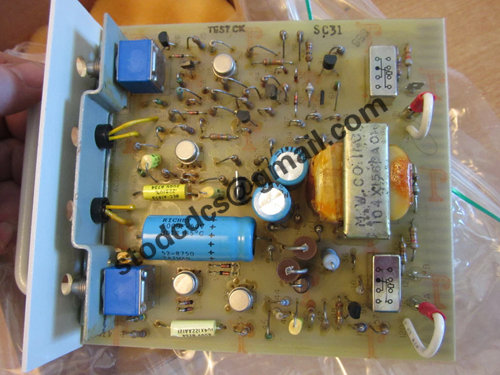

193X244ACG01 signal detector

Brand:GE
Model:193X244ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X244ACG01 signal detector

Product manual:

(GE General Electric 193X Series Analog Signal Processing Board)

product overview
193X244ACG01 is an analog signal detection and processing board in the 193X series control system module launched by GE (General Electric).
It is widely used in industrial automation, power plant control systems, and other applications, mainly for collecting, amplifying, and processing low-level analog signals,
And transmit it to the main control system to achieve signal monitoring and control response.

major function
Signal detection and sampling: capable of accurately capturing weak voltage and current signals from sensors or field devices.

Filtering and amplification: Low noise amplification is applied to analog signals to remove clutter and improve signal quality.

Isolation protection: Built in isolation channel to protect the main system from high voltage or interference signal impact.

Signal conditioning: supports signal linearization, bias calibration, and dynamic range adjustment.

technical specifications
Power requirement: ± 15V DC (powered by the main control system)

Input signal type: low voltage analog signal (05V, ± 10V), low current signal (420mA)

Output signal: Standard analog signal or voltage proportional signal after conditioning

Signal bandwidth: 0-10kHz (typical)

Signal accuracy: ± 0.1% F.S

Working temperature range:- 20°C ~ +70°C

Structure type: plug-in circuit board, compatible with GE 193X control rack

Application scenarios
Steam turbine and generator control system
