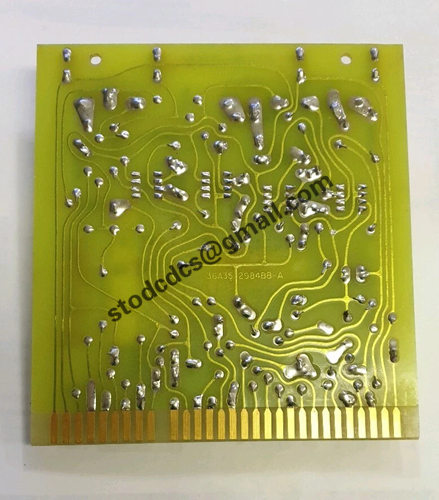

193X227BCG02 amplifier card

Brand:GE
Model:193X227BCG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X227BCG02 amplifier card

Product manual:

193X227BCG02 Amplifier Card

product overview
193X227BCG02 is a high-precision industrial amplifier card in the General Electric 193X series,
Mainly used for amplifying and processing analog signals, it is widely used in industrial automation control systems, drive controllers, and signal feedback modules.
This card is designed to enhance the amplitude of weak input signals, so that subsequent processing circuits can accurately identify and control them.

Main functional features

High gain linear amplification: The module has high gain amplification capability,
Suitable for low-level signal processing, such as current sensors, voltage detection, etc.

Input noise suppression: Built in filtering circuit effectively suppresses noise and electromagnetic interference in industrial sites,
Ensure signal purity.

Gain adjustment function: Users can adjust the gain through potentiometers or jumpers,
Adapt to different sensors or load characteristics.

Electrical isolation design: isolation processing between input and output,
Avoid signal crosstalk or grounding interference within the control system.

Modular card insertion design: compatible with GE control system slot structure,
Easy to install, replace, and maintain.

Technical Parameter

Input signal range: 0-5V, 0-10V, or ± 10V (depending on the system application configuration)

Output signal range: standard linear DC voltage matched with the control system

Gain accuracy: up to ± 0.1%, suitable for precision control requirements

Response time: microsecond level fast response, suitable for dynamic signal processing

Working power supply: ± 15V or ± 24V (powered by the system motherboard)

Temperature range:- 20 ° C to+70 ° C

PCB material: industrial grade FR-4 board, high temperature resistant and moisture-proof treatment

application area

Feedback signal conditioning in motor drive system

Industrial sensor signal amplification
