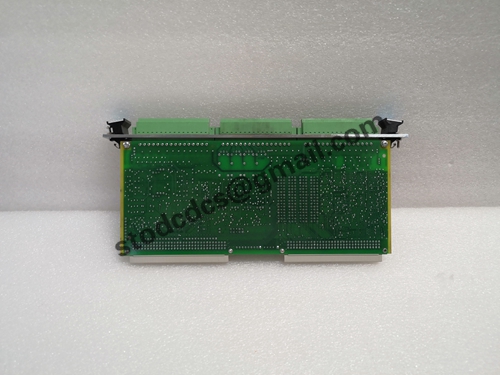

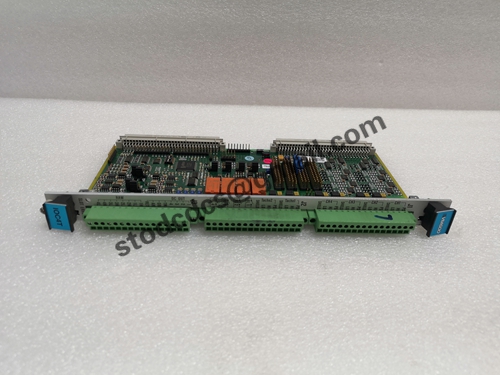

Vibro-meter 200-560-000-018 VM600 IOC4T input and output module

Speed and phase reference (tachometer) input

Number of independent channels: 4

Speed measurement: 1 to 100,000 RPM (0.017 Hz to 1.667 KHZ)

Velocity measurement resolution: 5 ns

Edge detection: rise or fall

Input signal type: Tachometer channels 1 and 2 support voltage and current inputs.

Tachometer channels 3 and 4 support voltage input only.
Current measuring resistor: 200Ω
Voltage range of the tachometer: −20 to +20 VDC
Tachometer Current range: −30 mA to +30 mA
Input impedance: ≥100kΩ
Maximum number of pulses per revolution: 128 for speed calculation
1 for phase reference only
Trigger threshold: Rising =⅓ interpeak value, falling =⅓ interpeak value
Input voltage range: 0.8 to 500 V peak-to-peak voltage, ranging from 0.3 Hz to 10 kHz
Peak to peak voltage 2.0 to 500 V, ranging from 10 kHz to 50 kHz
Minimum input voltage for reliable detection
• Square wave input signal: 0.8V peak-to-peak (0.016Hz to 10kHz)
2.0 volt peak (10 KHZ to 50 KHZ)
• Sinusoidal input signal: 10.0V between peaks (0.016Hz to 1Hz)
2.0 volt to peak voltage (1 Hz to 10 Hz)
0.8 V peak-to-peak voltage (10 Hz to 10 KHZ)
2.0 volt peak (10 KHZ to 50 KHZ)
Dc component range: −20 to +20 V
Maximum common mode voltage: ±50 V
Protection filter: filtered to prevent EMI (electromagnetic interference),
Meet CE standard
VM600 rack signal sharing
•XMV16 and XMVS16: to and from the VM600 tachometer bus (up to 6 lines)
